Zirconia Oxygen Analyser
ZOA-OXT-6000

Zirconia Oxygen Analyser

Flue gas oxygen content is one of the important monitoring parameters for boiler operation and an important basis to reflect the degree of combustion equipment and boiler operation perfection. Its value is related to the boiler structure, fuel type and nature, boiler load, operation and air distribution conditions, equipment sealing conditions and other factors.

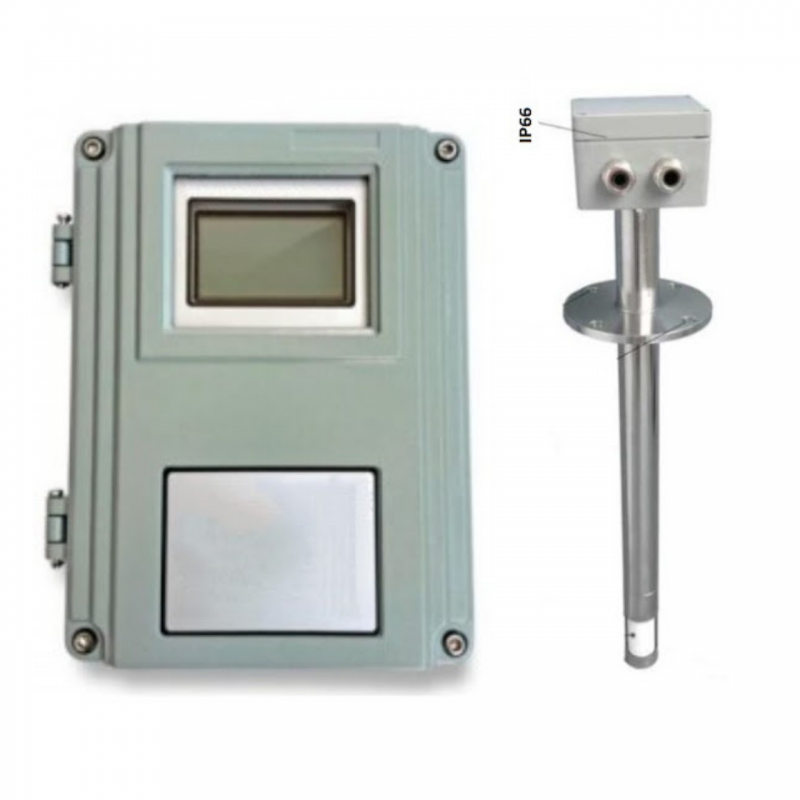

The wall mounted oxygen content converter adopts LCD liquid crystal display with rich display contents;

Menu function selection and operation, easy to learn and understand, low difficulty in use;

The instrument adopts imported industrial chip, which has strong anti-oxidation ability and ensures the calculation accuracy and stability;

The shell adopts cast aluminum shell with IP66 protection grade, which effectively protects the internal circuit from environmental pollution;

The wall mounted converter is installed locally, the distance between the detector and the converter is relatively close, and the debugging is convenient.

Including energy consumption industries, such as iron and steel metallurgy, thermal power plant, petrochemical industry, paper mill, food industry, textile industry.

The product industry also includes various combustion equipment, such as municipal solid waste incinerators, hazardous waste incinerators, small and medium-sized heating boilers, etc.

Parameter

Description

Parameter

Description

Process medium

Flue gas

Operating temperature

0-650 ℃

Operating pressure

±20KPa

Ambient temperature

- 20 ~ + 65 ℃

Detection type

Insert directly

Instrument Accuracy

0.5% FS or 0.1% of reading

Temperature control

±1°C

Range

0-25% (programmable)

Output signal

4-20mA

Insertion depth

200 mm ~2000mm (Customizable)

Display and installation mode

LCD, External display

Response time

T90 < 7s

Flange standard

DN50,PN1.0 (Customizable)

Electronics Unit IP Grade

IP 66

Process connection

Flange

Probe Unit IP Grade

IP 66

Protection tube material and size

SS304/SS316L, 51mm*4mm

Filter material

Ceramics (As per dust load)

Electrical interface

M25 * 1.5

Power supply:

100-240V 50-60Hz AC

Accessories

Probe Protection tube,mounting spool piece and Interconnection cable
