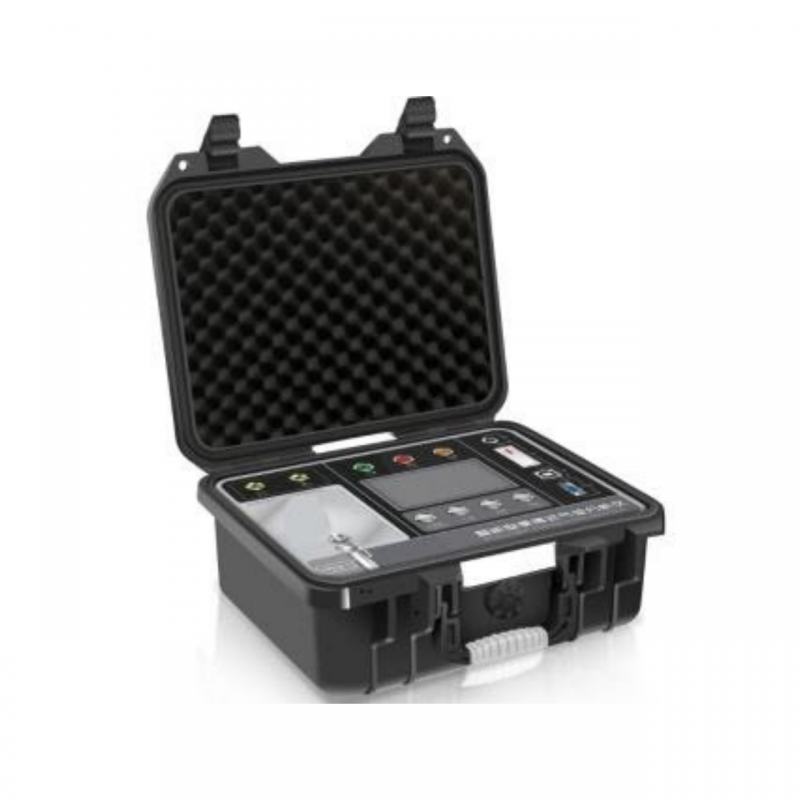

Portable Oxygen Gas Analyzer
T-GAS-P-O2

Portable Oxygen Gas Analyzer

A portable oxygen gas analyzer is a kind of high-precision pump suction gas analyzer suitable for complex environment detection. Built-in pretreatment, error compensation, anti-electrical interference, wireless signal output, and other functions, the gas analyzer can be expanded to detect 8 kinds of gas at the same time.

Related Products

Zirconia O...

Suitable for all kinds of complex or harsh environments. It can detect high temperature, high humidity, dust and other harsh environment gases with pretreatment.

High precision, built-in electrical anti-interference, error compensation, sampling and filtering technology, high precision detection

Using a 32-bit arm low-power high-speed processor.

Various display modes: digital and graphic display mode is adopted for gas concentration value.

Ultra wide viewing angle, bright 2.8-inch color LCD screen, long-distance visualization.

Bilingual operating system: it can switch between Chinese and English systems

The optional wireless data transmission module can realize the wireless signal transmission in the area covered by the wireless signal

The Internet of things function can be selected: it can be connected to the heath server to realize the remote monitoring of mobile phone and computer, alarm reminder and alarm value setting, etc;

It supports the replacement and combination of various gas sensors (1 ~ 8 parameters).

Built in long-life brushless air pump, high air flow stability.

High and low alarm points can be set, two-level alarm

Large capacity data storage, data can be exported

Super long endurance, can work continuously for more than 48 hour.

Air Separation Industry

Detection of oxygen concentration in Oxygen-making equipments of PSA industry

Chemical and Smelting Industries

Medical and health industry such as hyperbaric oxygen chamber,infant incubator, anesthesia machine and other oxygen concentration detection

Parameter

Description

Model name Portable

O2 gas analyzer

Detect gas

O2

Range

100%VOL

Unit

%VOL

Resolution

0.1%VOL

Precision

≤±2%FS

Repeatability

≤±1%

Response time

30s

Recovery time

T90-T10

Display

320*240 color screen 2.8’

Language

Chinese and English

Sampling method

Pump type

Shell material

ABS

Temperature measurement range

-40℃~+120℃ ±0.2℃

Humidity measurement range

0~+100%RH ±3℃

Wireless output (optional)

WIFI、Zigbee、LORA、433M、800M、GPRS/3G/4G

communication interface

RS-232 USB

Alarm

LED;Display screen character flashing and information reminder; Buzzer alarm;

Life time

Above 5 years

Power supply

3.3V-4.5VDC,Typical power supply 3.7VDC

Power capacity

6000mA

Charging parameters

5V 1A

Dimension

283 MM * 332 MM * 148 MM(L*W*H)

Weight

4.0±0.1kg
