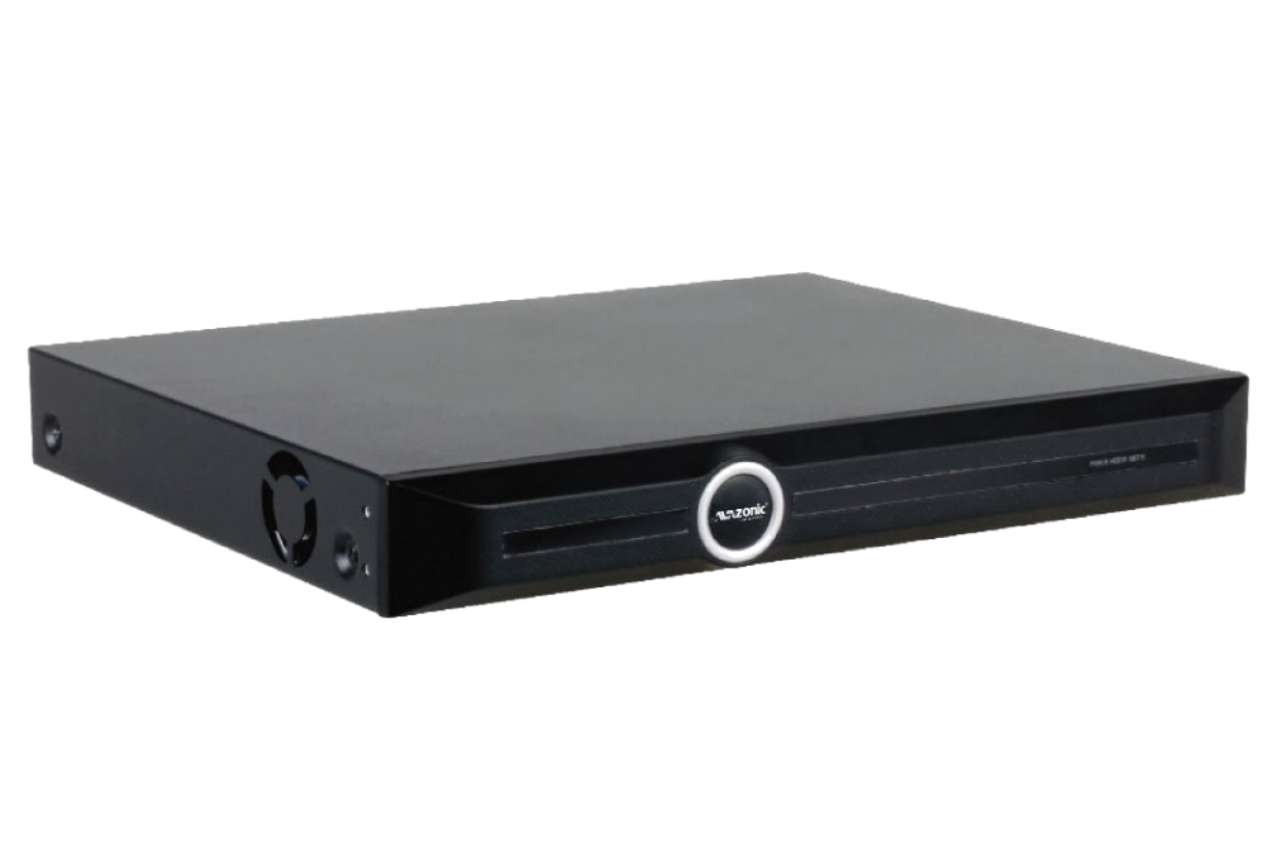

H.265 160 Channel 24HDD HOT SWAP Network Video Recorder

Video/Audio Input
Video Input -- 160 Channel
Audio Input -- 1-ch, 3.5mm

Network
Incoming Bandwidth -- 960Mbps
Outgoing Bandwidth -- 480Mbps
Mobile Software -- P2P & DDNS for IOS & Android
Internet Protocol -- TCP/UDP/HTTP/MULTICAST/UPnP/DHCP/PPPoE/DDNS/FTP/NTP/RTSP/SMTP/SADP/SNMP
Email -- Activated by Alarm
ANR -- Yes
Remote Connection -- 160
Browser -- Support all browsers, including IE, Safari, Chrome, Edge. (H.265 only supports configuration in non-IE kernel browsers)
Advanced -- Remaining Bandwidth Display, Flow Monitor, Capture Package

Video/Audio Output
HDMI Output -- 2-ch Resolution : 4096*2160, 3840×2160, 2560×1600, 1600×1200, 3840×2160, 2560×1600, 2560×1440, 1920×1080, 1280×720, 800×600, 1024×768, 1366×768, 1440×900, 1280×800
VGA Output -- 1-ch Resolution: 1920×1080,1600x1200, 1280x1024, 1280×720, 800×600,1024×768, 1366×768, 1440×900, 1280×800
Audio Output -- 1-ch BNC ,1-ch 3.5mm
Recording Resolution -- 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback -- 5-ch 4K/16-ch 1080P/720P/4CIF
Display Split -- 1/3/4/6/8/9/10/13/16/20/25/36/40/64

Hard Disk
SATA -- 24 SATA for 24 HDDs (Hot Swap)
Capacity -- Up to 10TB Capacity for Each HDD(0~45°C)

Advance
Video Analytics(VCA) -- Tripwire/Double Tripwire/Perimeter/Object Abandon/Object Lost/Running/Loitering/Parking/Early Warning/Crowd/Face Detection/People Counting/Audio Abnormal Detection/Video Abnormal Detection/On duty Detection/intelligenct tracking/Heat Map
I-Frame Record -- Yes
Plug and Play -- N/A
Image Flip -- Yes, Only for Avazonic Cameras
Corridor Mode -- Yes, Only for Avazonic Cameras
Smart Search -- Quickly Search Target VCA Videos, Only for Avazonic Cameras
Trigger Recording -- Manual/Timing/Motion Detection/Port Alarm/ VCA Alarm/Video Lost/Video Mask
Alarm Recording -- Pre Alarm Default 10s ( 5/10/15/60s Optional), Post Alarm Default 10s (10/15/30/60/600s Optional ).
Smart Recording -- Set Recording Bit Rate for Dierent Time
One Key Control -- Intercom, Recording,one key add
Records Format -- SDV, MP4
Records Encryption -- Yes
Records Tag -- Yes
Onvif -- Onvif(Profile S)

General
Power Supply -- 100 ~ 240V AC, 50 ~ 60Hz
Consumption (withoutHDD) -- Max 610w, Average 650w
Working Temperature -- -10oC ~ +55oC (+14oF~ + 131oF)
Working Humidity -- 0°C~50°C
Chassis -- 4U
Dimensions -- 542mm×446.6mm×173.8mm
Weight -- 25Kg (without HDD)
