Vibration Meter

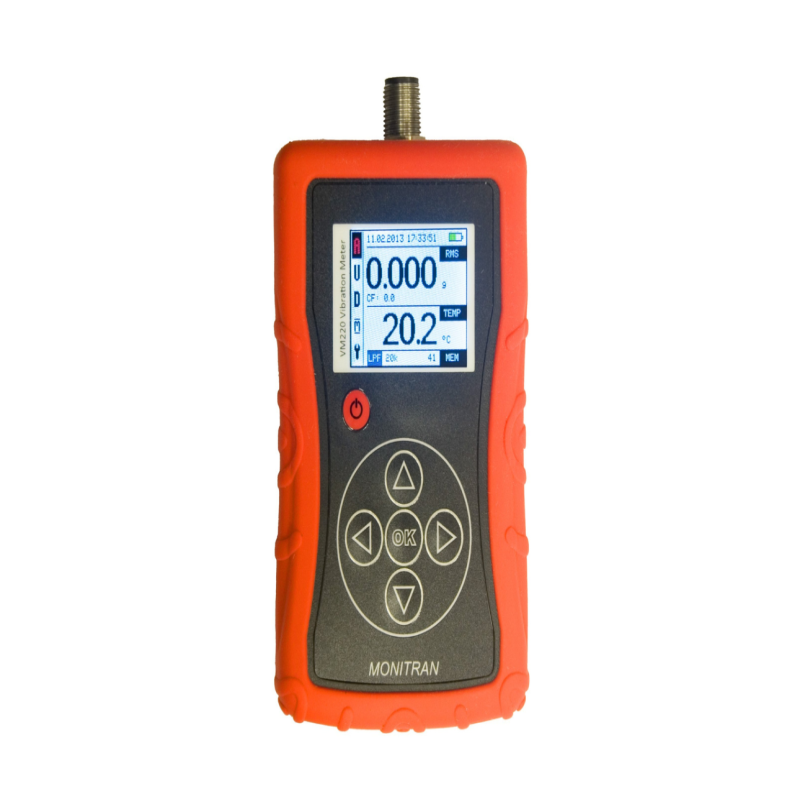

The MTN/VM220 is a compact, rechargeable, portable handheld Vibration Meter designed to conform to ISO10816-3 and operate with a constant current accelerometer providing an accurate vibration measurement. Features comprises the ability to store up to 100 time-stamped readings, including; RMS, peak, peak-peak, crest factor and bearing conditions all on an easy to read vibrant colour LCD display.

Related Products

Velocity t...

Rechargeable Lithium-ion battery with worldwide charger
User-selectable units
High visibility colour LCD display.
RMS, peak, peak-peak, crest factor readings in acceleration,velocity or displacement modes
100 memories can store vibration and time/date
Supplied with MTN/2200 probe sensor, others available.
Audio output for listening to vibration directly
Adaptive amplifier for high accuracy
Visual indication of machine status

Rotodynamic pumps for industrial applications.
Measurements on rotating shafts.
VM-220 is used for more precise monitoring of bearings.

Frequency ranges

Low pass filters : 1kHz, 5kHz, 10kHz
Band-pass filter : 1-10kHz

Measurement ranges (Different ranges available)

Acceleration : 20g
Velocity : 200mm/s
Displacement : 2000 μm

Sensor

MTN/2200-2P/4P/C (with optional connectors and cables)
Frequency Range: 0.8Hz – 12kHz
Temperature Range: -55 to 140°C
Output: AC 100mV/g
Entry Type: Top Entry

Power

Charger 100-240V/5V 1A USB with 4 adaptors
Battery Li-ion 3.7V
Battery life >20 hours
Power status Battery icon indicates charging status, battery level
