Vibration Meter

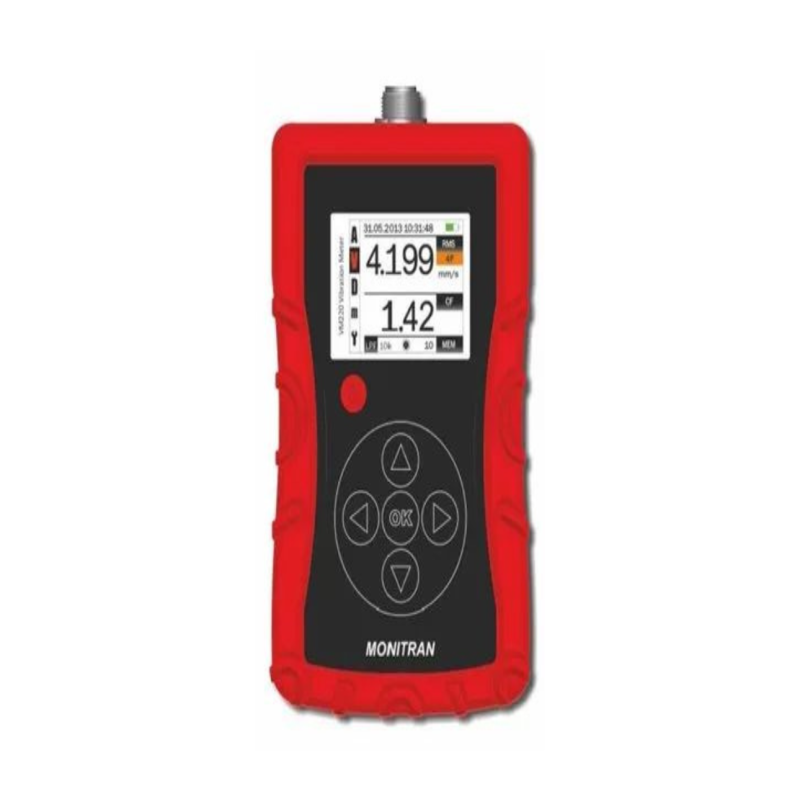

The MTN/VM330D is a compact and rechargeable handheld Vibration Meter which provide the option to transfer the data and designed to conform to
ISO10816-3. With an easy to read vibrant colour LCD display and operate with a constant current accelerometer providing an accurate vibration measurement. Overall, the MTN/VM330D Vibration Meter provides a comprehensive solution for vibration analysis, combining accuracy, portability, and advanced features to support effective maintenance practices in industrial settings.

Related Products

Velocity V...

Memory data can be transferred to PC with USB cable (included)
Rechargeable Lithium-ion battery with worldwide charger
Switchable low pass filter
User-selectable units
RMS, peak, peak-peak, crest factor readings in acceleration,velocity or displacement modes
100 memories can store vibration and time/date
Audio output for listening to vibration directly
Supplied with MTN/2200 probe sensor, others available.

Rotodynamic pumps for industrial applications.
Measurements on rotating shafts.
VM-330 is used for more precise monitoring of bearings.
Alignment and Balancing
Data can be transferred to other devices for further analysis.

Frequency ranges

Low pass filters : 1kHz, 5kHz, 10kHz
Band-pass filter : 1-10kHz

Measurement ranges (Different ranges available)

Acceleration : 20g
Velocity : 200mm/s
Displacement : 2000 μm

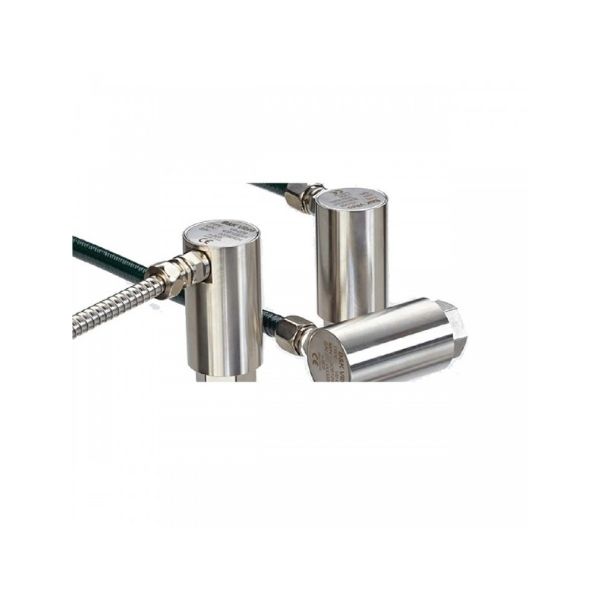

Sensor

MTN/2200-2P/4P/C (with optional connectors and cables)
Frequency Range: 0.8Hz – 12kHz
Temperature Range: -55 to 140°C
Output: AC 100mV/g
Entry Type: Top Entry

Power

Charger 100-240V/5V 1A USB with 4 adaptors
Battery Li-ion 3.7V
Battery life >18 hours
Power status Battery icon indicates charging status, battery level

100 memory slots in total the memories will remain intact, even after battery replacement and calibration
