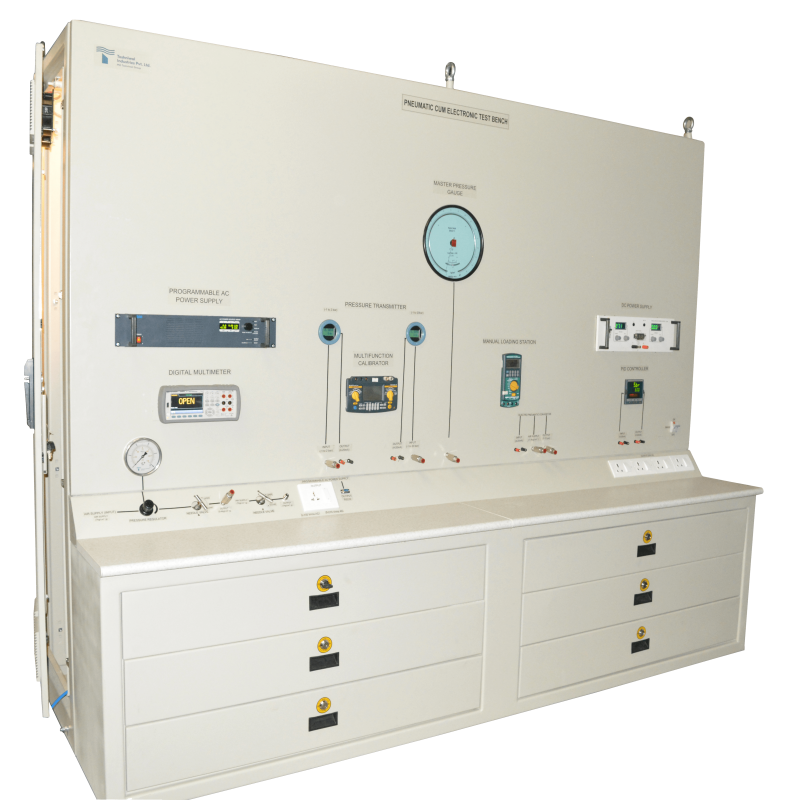

Wide range of tables & auxiliary furniture, panel modules, instruments & additional equipped test benches for Instrumentation shop, Metrology labs, Calibration labs, Repair shops or educational institutions.

Includes : -

Mains control board with protection for power distribution : MCB / ELCB, fuses, indicators for main supply.

Powered from 230VAC, 50Hz, single phase. AC sockets with switches & DC connections are provided. Normally, every bench has 6 x 230VAC sockets and switches & 1 x 24VDC power supply socket and 24VDC power supply.

Standard lengths available are 1200mm, 1600mm, 1800mm, 2000mm, 3000mm ; Worktop depth is 900mm ; Height from ground to worktop being 870mm and from ground to console top being 1545mm as standard ; Console is 310mm in height, However, the dimensions can be customized, as per specific requirements.

Console is modular and front anodized blank plate are included for further integration of Instruments for Rack/Flush Mount on modular basis.

Test Benches are modular and supplied in knockdown condition with detailed assembly procedures.

Standard modules available from TIPL ( Power supplies & a wide range of Test, Measuring Equipment and Calibration Standards Temperature, Pressure, Process, Electrical and Electronic parameters ).
